How To Delete Selected Row From Tkinter Treeview In Python
import tkinter as tk
from tkinter import *
from tkinter import ttk
root = Tk()
frame = tk.Frame(root, bg='#3498db')
frame_btns = tk.Frame(frame, bg='#3498db')
data = [
[1,"AAA","BBB","ab@mail.com",17],
[3,"EEE","FFF","ef@mail.com",91],
[4,"GGG","HHH","gh@mail.com",47],
[7,"MMM","NNN","mn@mail.com",25],
[8,"PPP","QQQ","pq@mail.com",43],
[9,"RRR","SSS","rs@mail.com",94],
]
label_id = tk.Label(frame, text='ID:', font=('verdana',14), bg='#3498db')
entry_id = tk.Entry(frame, font=('verdana',14))
label_fname = tk.Label(frame, text='First Name:', font=('verdana',14), bg='#3498db')
entry_fname = tk.Entry(frame, font=('verdana',14))
label_lname = tk.Label(frame, text='Last Name:', font=('verdana',14), bg='#3498db')
entry_lname = tk.Entry(frame, font=('verdana',14))
label_email = tk.Label(frame, text='Email:', font=('verdana',14), bg='#3498db')
entry_email = tk.Entry(frame, font=('verdana',14))
label_age = tk.Label(frame, text='Age:', font=('verdana',14), bg='#3498db')
entry_age = tk.Entry(frame, font=('verdana',14))
btn_remove = tk.Button(frame, text='Remove', font=('verdana',14), bg='#f39c12',
fg='#ffffff', width=10)
trv = ttk.Treeview(frame, columns=(1,2,3,4,5), show='headings')
trv.column(1, anchor='center', width=100)
trv.column(2, anchor='center', width=100)
trv.column(3, anchor='center', width=100)
trv.column(4, anchor='center', width=100)
trv.column(5, anchor='center', width=100)
trv.heading(1, text='ID')
trv.heading(2, text='First Name')
trv.heading(3, text='Last Name')
trv.heading(4, text='Email')
trv.heading(5, text='Age')
# create a function to display data in treeview
def displayData():
for row in data:
trv.insert('',END, values=row)
displayData()
# create a function to display the selected row from treeview
def displaySelectedItem(a):
# clear entries
entry_id.delete(0,END)
entry_fname.delete(0,END)
entry_lname.delete(0,END)
entry_email.delete(0,END)
entry_age.delete(0,END)
selectedItem = trv.selection()[0]
entry_id.insert(0, trv.item(selectedItem)['values'][0])
entry_fname.insert(0, trv.item(selectedItem)['values'][1])
entry_lname.insert(0, trv.item(selectedItem)['values'][2])
entry_email.insert(0, trv.item(selectedItem)['values'][3])
entry_age.insert(0, trv.item(selectedItem)['values'][4])
trv.bind("<<TreeviewSelect>>", displaySelectedItem)
def remove():
try:
selectedItem = trv.selection()[0]
trv.delete(selectedItem)
except:
print('Error')
btn_remove['command'] = remove
frame.grid(row=0, column=0)
label_id.grid(row=0, column=0, sticky='e')
entry_id.grid(row=0, column=1)
trv.grid(row=0, column=2, rowspan=5, padx=10, pady=10)
label_fname.grid(row=1, column=0, sticky='e')
entry_fname.grid(row=1, column=1)
label_lname.grid(row=2, column=0, sticky='e')
entry_lname.grid(row=2, column=1)
label_email.grid(row=3, column=0, sticky='e')
entry_email.grid(row=3, column=1)
label_age.grid(row=4, column=0, sticky='e')
entry_age.grid(row=4, column=1)
btn_remove.grid(row=5, column=0, columnspan=2, sticky='nsew', padx=(10,0), pady=10)
root.mainloop()
OUTPUT:
 |
| Python Tkinter TreeView Remove Selected Row - Before |
 |

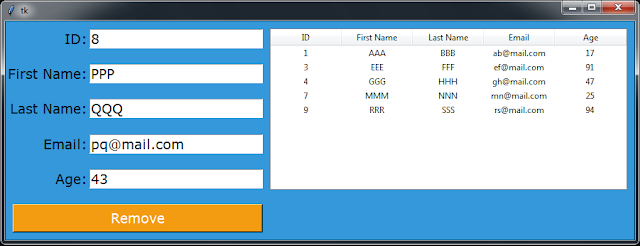

| Python Tkinter TreeView Remove Row - After |
